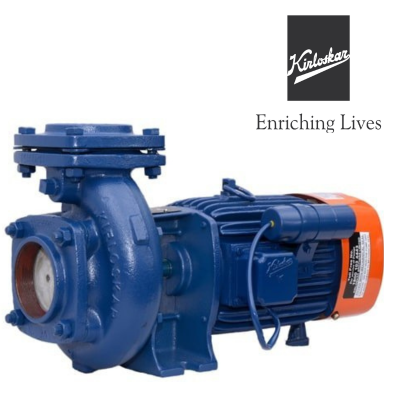

The Kirloskar 3.0 HP 3-Phase Raw Water Pump is a robust centrifugal monoblock pump designed for efficient water handling in agricultural, industrial, and domestic applications.
The Kirloskar 3.0 HP 3-Phase Raw Water Pump is a robust centrifugal monoblock pump designed for efficient water handling in agricultural, industrial, and domestic applications.
Key Specifications
Model: KDS-318++
Power: 3 HP (2.2 kW)
Phase: Three-phase (415 V, 50 Hz)
Pump Type: Monobloc, surface-mounted
Suction Size: 80 mm
Delivery Size: 65 mm
Speed: 2840 RPM
Head Range: 12 to 19 meters
Discharge Range: 5.5 to 11.7 LPS
Impeller Material: Cast Iron / Noryl
Pump Shaft: Carbon Steel
Sealing: Gland Packed
Weight: 61 kg
Warranty: 12 months
Key Features
High Efficiency & Energy Saving: Designed for higher output at lower operating costs and extended lifespan.
Wide Voltage Tolerance: Operates efficiently within a voltage range of 180–240 V, accommodating voltage fluctuations.
Automatic Air Release: Ensures smooth operation by automatically releasing air during startup.
Corrosion Protection: Equipped with CED coating, providing five times more protection from corrosion compared to conventional painting.
Durable Construction: Features dynamically balanced rotating parts for minimal vibration and noise.
Applications
Ideal for:
Agricultural irrigation
Water supply to high-rise buildings
Lawn sprinklers
Water transfer and circulation
Industrial applications requiring raw water handling.
