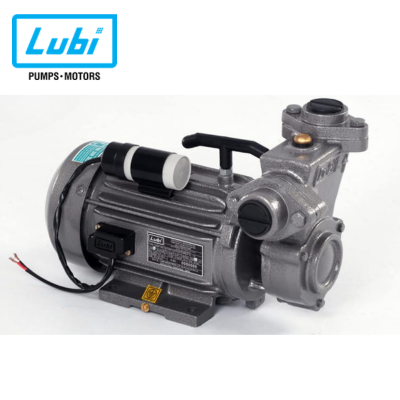

RAW WATER PUMP 1.0HP LUBI VIRAT DIMOND

The Lubi Virat Diamond 1.0 HP Self-Priming Monoblock Pump is a robust and efficient water pump designed for domestic applications, particularly where water needs to be lifted from shallow sources like overhead tanks or shallow wells.

Key Specifications

• Model: Virat Diamond

• Power: 1 HP (0.75 kW)

• Phase: Single Phase

• Voltage: 230 V AC

• Frequency: 50 Hz

• Rated Speed: 2880 RPM

• Suction Size: 25 mm

• Delivery Size: 25 mm

• Head Range: 6 to 33 meters

• Flow Rate: 3200 to 6000 LPH

• Country of Origin: India

Design & Features

• Self-Priming Capability: Can lift water from depths up to 7.5 meters, making it suitable for shallow wells and overhead tanks.

• High-Quality Construction: Features a close-grained cast iron pump casing, adapter, and end shields for durability.

• Brass Impeller: Ensures trouble-free service and longevity.

• Moisture-Resistant Motor Windings: Vacuum impregnated with synthetic varnish to enhance moisture resistance.

• Superior Mechanical Seal: Provides effective sealing against water leakage, extending the pump's lifespan.

• Pre-Lubricated Ball Bearings: Double-shielded and anti-friction bearings at both ends to withstand radial and axial loads.

• Thermal Overload Protector (TOP): Safeguards the motor from overheating.

• Fan-Cooled Motor Body: Features a sheet metal drip-proof fan-cooled motor body (MDL-2SP, 4SP) or Totally Enclosed Fan Cooled (TEFC) construction (MDL-2TC, 4TC) to resist dust and moisture.

Applications

Ideal for domestic water supply, this pump is commonly used in:

• Watering gardens and lawns

• Supplying water to overhead tanks

• Shallow well water lifting

• General household water circulation.
