PANEL 1:1 LCD PROTON
A high-quality 1:1 replacement LCD screen for Proton devices, offering precise color reproduction, clear visuals, and responsive touch performance for seamless device operation.

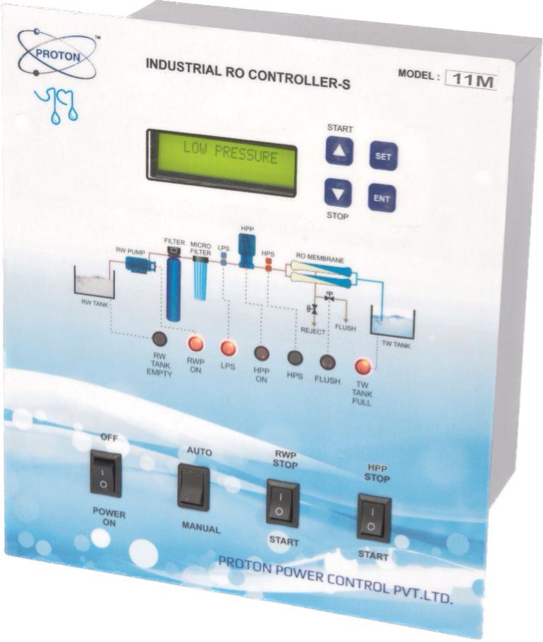

The Proton RO Control Panel 1:1 is a compact, user-friendly device designed for managing Reverse Osmosis (RO) water purification systems. It offers essential control and monitoring functions, making it suitable for small to medium-scale applications.
Key Specifications
Input Voltage: 230VAC, 50Hz
Output Current: 10A
Display: 16x2 LCD screen
Interface: 4-key keypad for programming
Mounting: Panel-mount design
Dimensions: 165 mm (W) x 60 mm (L) x 115 mm (H)
Cutout Size: 157 mm (W) x 109 mm (H)
Environmental Conditions:
Operating Temperature: 0°C to 55°C
Storage Temperature: -10°C to 70°C
Humidity: 0–95% (non-condensing)
Warm-up Time: 10 seconds
Features
User Programmable: Allows customization of settings to match specific operational requirements.
Password Protection: Secures parameter settings to prevent unauthorized changes.
Real-Time Monitoring: Displays operational messages, faults, run hours, and total cumulative flow.
Front Panel LED Indicators: Provides visual status updates for various functions.
Motor Protection: Safeguards against underload and overload conditions.
Onsite Programming: Facilitates easy adjustments through a 4-key interface.
Applications
Ideal for managing RO systems in various settings, including:
Drinking water purification plants
Industrial water treatment facilities
Commercial establishments requiring purified water.
