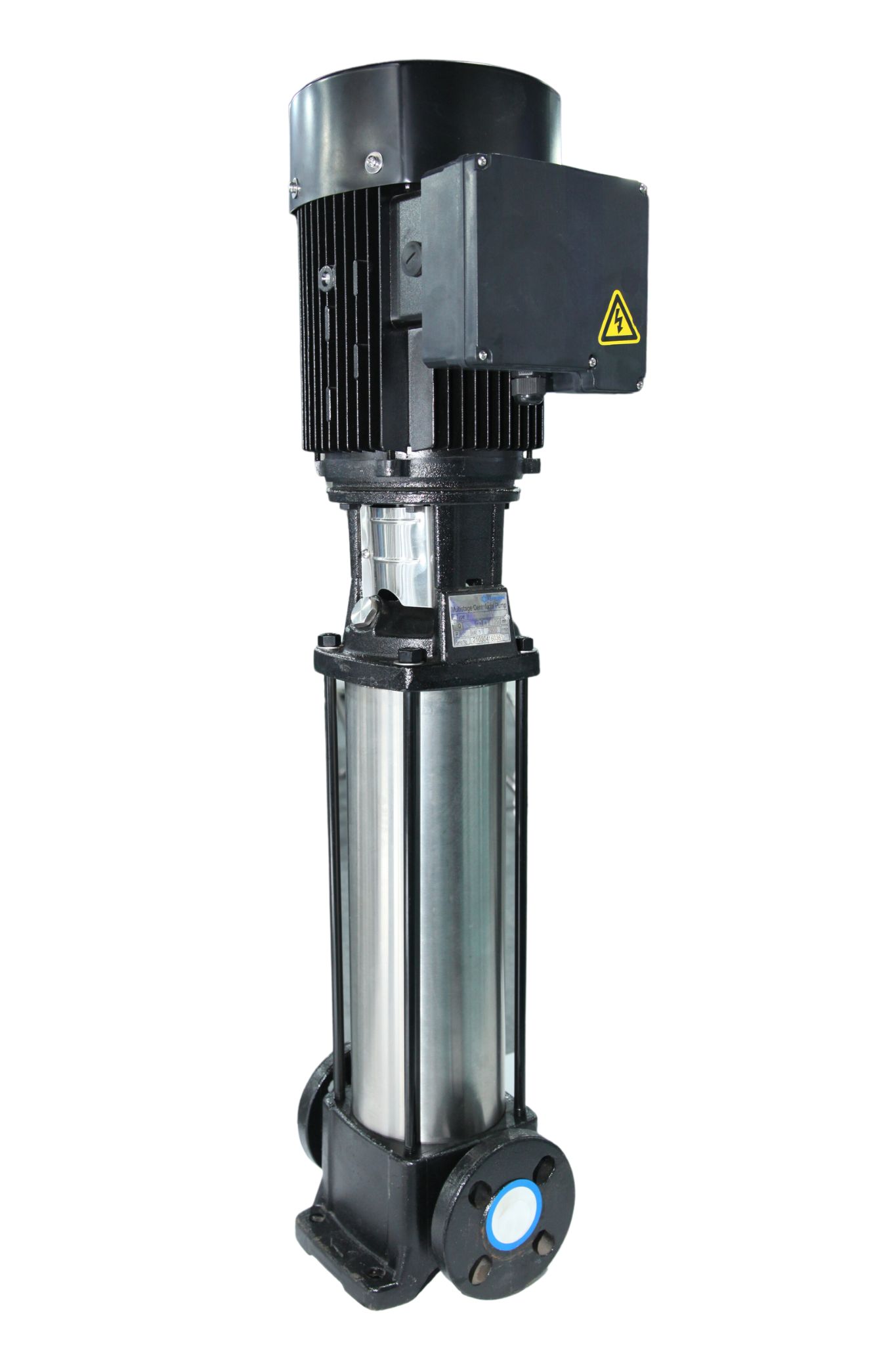

The LQDL a stainless steel stamping centrifugal pump is a technologically advanced pump. It incorporates hydraulic models that ensure high efficiency and energy savings. The internal leaf of the pump is made of stainless steel stamping, providing a smooth flow and avoiding contamination. The pump is equipped with a wear-resistant mechanical seal, ensuring no leakage. The motor features a Y2 lead shell, imported bearings, and insulation level class F. Overall, this pump offers smooth operation, low noise, reliable quality, a beautiful appearance, small size, light weight, and easy installation and operation. It is designed to be an environmentally friendly and energy-saving water pump.
Product Features:
- Suitable for hot and cold clean liquids that are non-flammable, non-explosive, and do not contain solid particles or fibers.
- Liquid temperature range: -15°C to +70°C for general liquids and +70°C to +115°C for hot water applications.
- Operating environment temperature: up to +40°C.
- Minimum entrance pressure curve: NPSH +0.5m (Net Positive Suction Head required).
- Safety margin for head: 0.5m, ensuring a safe operating range.
Rs.31,713.00 Rs.57,660.00
Product Details
Product Details
Product Details
Model Name/Number: LQDL 2-18
Brand: Lyson
Maximum Head: 163 m
Motor Speed: 2900 rpm
Pump Type: Vertical Multistage Centrifugal Inline Pump
Electric Supply: Three Phase 440V, 50 Hz AC Supply
Motor Power: 2.2 kW
