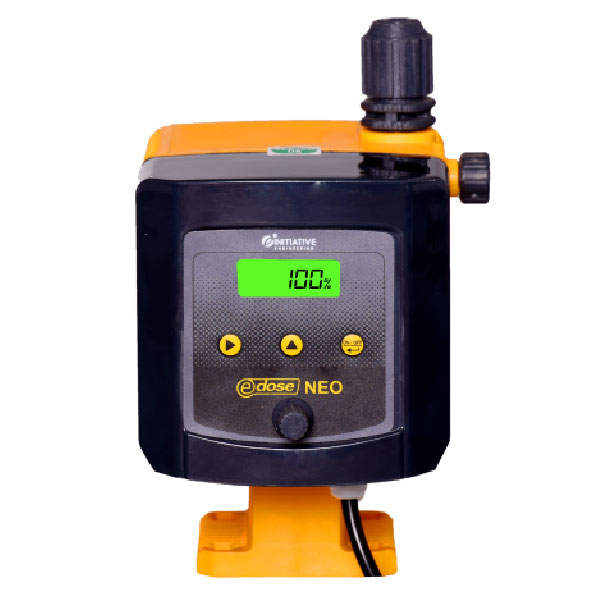

DOSING PUMP 6 LPH E DOSE NEO
The Dosing Pump 6 LPH E Dose Neo is an electric precision pump designed for accurate chemical dosing. With a maximum flow rate of 6 liters per hour (LPH), it ensures reliable and controlled injection of liquids in water treatment, industrial processes, or agricultural applications. Compact and easy to install, it offers adjustable dosing for efficient operation and minimal maintenance.
The eDose NEO 6 LPH Dosing Pump is a precision electronic metering pump designed for accurate and reliable chemical dosing in various industrial applications, including water treatment, effluent treatment, and chemical processing.
Key Features
Adjustable Dosing Rate: Offers dosing capacities of 6 LPH and 10 LPH at 4 kg/cm² pressure, with adjustable stroke frequency up to 400 strokes per minute (SPM) for precise control.
User-Friendly Interface: Equipped with a backlit LCD display and a digital knob for easy dosing frequency adjustments. Includes a password lock feature for secure operation.
Chemical Compatibility: Constructed with a solid PTFE diaphragm and PVDF housing, making it suitable for dosing harsh chemicals like sulfuric acid and sodium hypochlorite.
Safety Features: Features a built-in Air Release Valve (ARV) to prevent chemical spills and a double ball Non-Return Valve (NRV) with PTFE seals to ensure accurate dosing and prevent backflow.
Durability: IP65-rated enclosure provides protection against dust and water ingress, ensuring reliable operation in harsh environments.
Low Power Consumption: Operates at 230V AC, 50 Hz with a power consumption of 30 watts at maximum speed.
What's Included
eDose NEO Dosing Pump
Suction and discharge tubing (4/6 mm)
Suction filter with NRV
Anti-siphon valve
Mounting bolts
User and maintenance manual.
Applications
Sulfuric acid dosing
Harsh chemical dosing
Industrial chemical treatment
Effluent treatment plants
Water treatment processes.
