DOSING PUMP 6 LPH AC

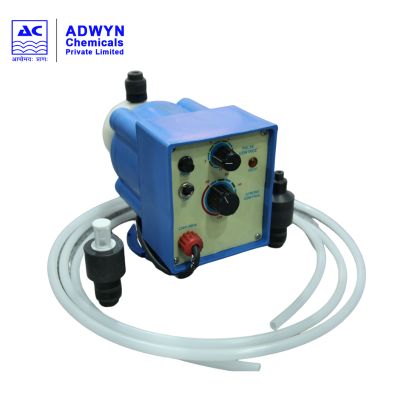

Dosing Pump – 6 LPH AC

1. General Overview:
A dosing pump is a precision pump designed to inject a controlled amount of liquid or chemical into a system or process. The 6 LPH (liters per hour) AC-powered dosing pump is commonly used in water treatment, chemical processing, and industrial applications where accurate chemical dosing is required.

2. Key Specifications:

• Flow Rate: 6 LPH (Liters Per Hour)

• Power Supply: AC (typically 220–240V, 50/60 Hz)

• Operating Pressure: Usually up to 6–8 bar (varies by model)

• Motor Type: AC synchronous motor

• Pump Type: Diaphragm or peristaltic type (depending on manufacturer)

• Material of Construction:

  • Pump head: PVDF / PVC / Stainless Steel

  • Diaphragm: PTFE or Rubber (EPDM / Viton)

  • Tubing: Chemical resistant PVC or PTFE

• Control Options: Manual stroke adjustment or electronic control (pulse, analog, or remote control)

• Temperature Range: Typically 0–40°C (may vary for specific models)

• Chemical Compatibility: Compatible with acids, alkalis, and other chemicals depending on material selection.

3. Features:

• Accurate and consistent dosing

• Compact and robust design

• Easy maintenance and replacement of diaphragms/tubing

• Anti-siphon and leak detection options available

• Can be used for continuous or intermittent dosing

4. Applications:

• Water treatment plants (chlorination, pH adjustment, anti-scale dosing)

• Industrial chemical dosing

• Swimming pool maintenance

• Boiler water treatment

• Food and beverage processing (with food-grade materials)

5. Installation & Operation:

• Mount the pump securely in a dry, ventilated area.

• Connect the inlet to the chemical supply and the outlet to the dosing point.

• Adjust stroke length or frequency to achieve the required dosing flow rate.

• Ensure electrical connection matches AC specifications.
