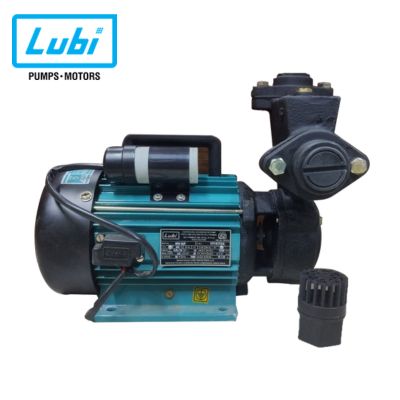

The LUBI MDH-36A is a 1.0 HP self-priming monoblock centrifugal pump designed for efficient water handling in domestic, agricultural, and light industrial applications.This pump is particularly suitable for applications requiring robust performance under varying conditions, offering reliable water supply and circulation.
The LUBI MDH-36A 1.0HP Self-Priming Monoblock Pump is a robust and efficient water pump designed for domestic and light industrial applications. Here's a detailed overview:
Key Specifications
Motor Power: 1.0 HP (0.75 kW)
Phase: Single-phase
Voltage: 230 V AC
Frequency: 50 Hz
Speed: 2880 RPM
Flow Rate: Up to 3600 LPH (liters per hour)
Total Head: Up to 42 meters
Suction/Delivery Size: 25 mm (1 inch)
Weight: Approximately 8 kg
Warranty: 1-year replacement guarantee.
Design & Features
Construction: Pump casing, adapter, and end shields are made of close-grained cast iron for high tensile strength.
Impeller: Forged brass impeller ensures trouble-free service.
Motor Windings: Vacuum impregnated with synthetic varnish for better moisture resistance.
Mechanical Seal: Superior mechanical seal for longer life and effective sealing against water leakage.
Motor Body: Aluminum extruded/die-cast motor body for better heat dissipation and corrosion resistance.
Bearings: Double shielded pre-lubricated anti-friction ball bearings fitted at both ends to withstand radial and axial loads.
Thermal Overload Protector (TOP): Protects the motor from overheating.
Cooling: Totally enclosed fan-cooled (TEFC) construction resists dust and moisture.
Self-Priming: Capable of self-priming up to 6.0 meters at mean sea level.
Applications
Ideal for:
Residential bungalows
Car washing
Sprinklers in lawns and gardens
RO water treatment plants
Community water supply.
