5675 DISTRIBUTION SYSTEM BOTTOM (For 4872)

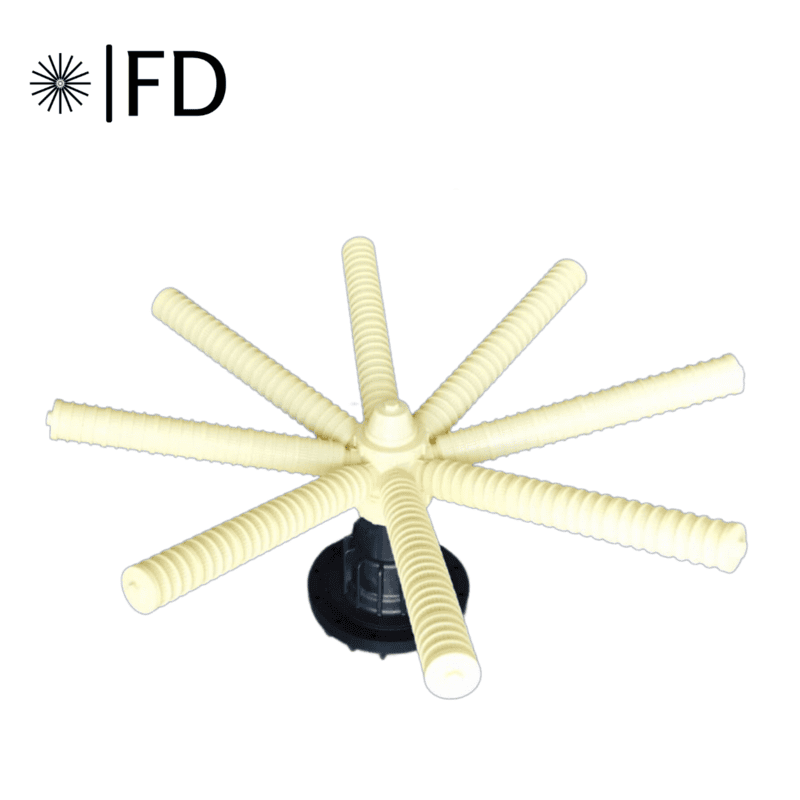

5675 Distribution System Bottom (For 4872) – Base component of the 4872 distribution system, providing structural support and housing for internal distribution elements.
The 5675 distribution system bottom is a component designed for use with the 4872 FRP (Fiberglass Reinforced Plastic) filter tank, commonly utilized in water filtration and treatment applications.

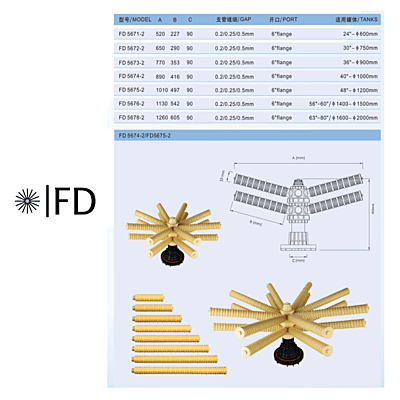

Technical Specifications
Model: FD5675 (side-mount) or FU5675-2 (top-mount)
Material: ABS/PP
Flange Size: 6 inches
Connection Size: 3 inches
Tank Compatibility: Suitable for 4872 and 4896 FRP tanks with a diameter of approximately 1200 mm
Maximum Flowrate: 30–50 m³/h
Filter Slot Sizes: 0.2, 0.25, or 0.5 mm
Purpose: To evenly distribute water across the filter media and prevent media migration into the outlet
Functional Role
The 5675 distribution system bottom serves multiple critical functions in filtration systems:
Even Water Distribution: Ensures uniform water flow across the filter media, enhancing filtration efficiency.
Prevention of Media Migration: Stops filter media from entering the outlet, protecting downstream equipment.
Protection of Valves: Prevents debris and media from reaching and potentially damaging valves.
Durability and Corrosion Resistance: Made from ABS/PP materials, it offers resistance to chemicals and corrosion, ensuring longevity.
Installation and Compatibility
The 5675 distribution system bottom is designed for easy installation, compatible with both side-mount and top-mount configurations of the 4872 FRP filter tank. Its design facilitates straightforward integration into existing filtration systems.
