"5674 Distribution System TOP for 4272 Vessel – Top-side distribution system designed for efficient flow management and integration on vessel 4272."

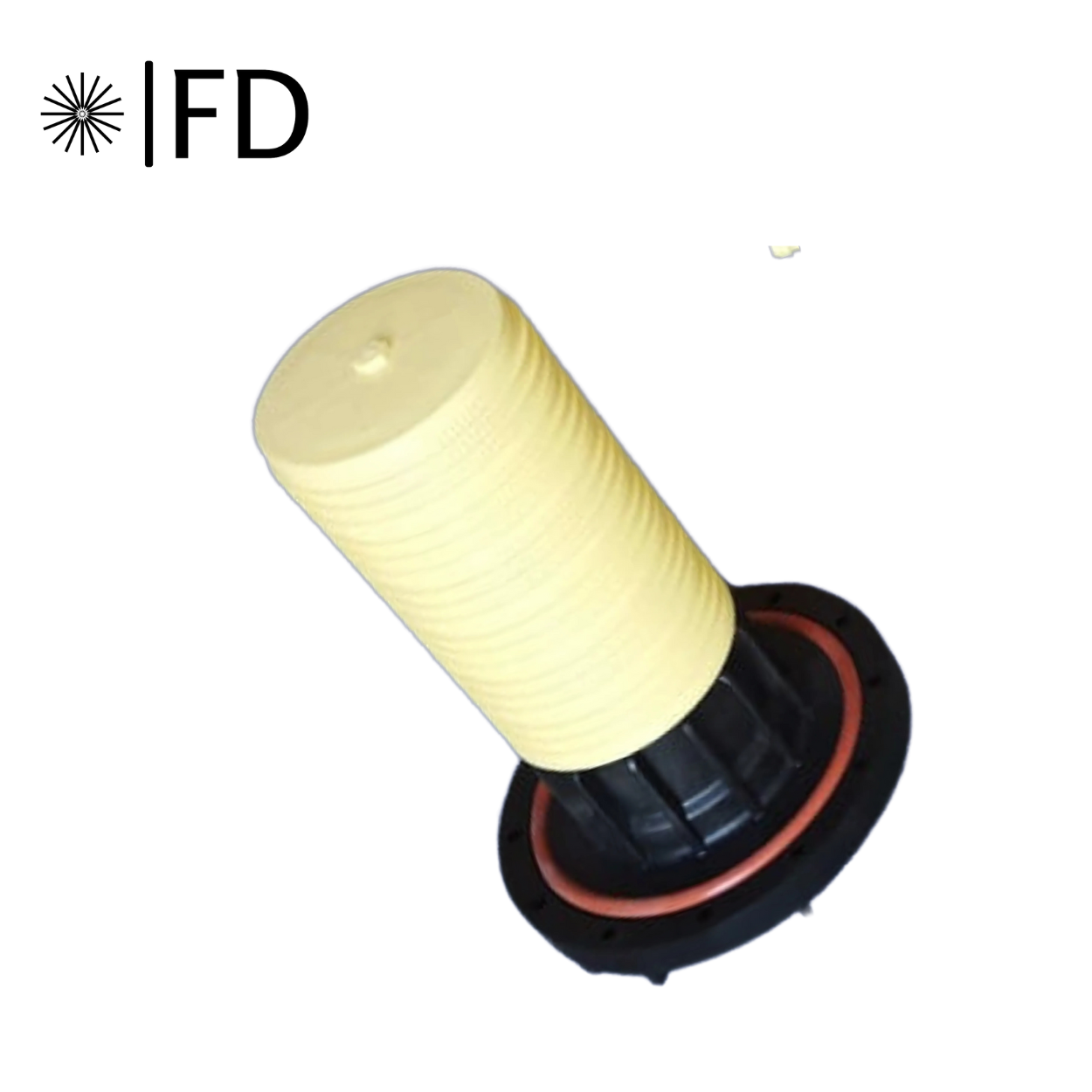

The FU5674-2 is a top-mount distribution system designed for the 4272 FRP (Fiberglass Reinforced Plastic) filter tank, commonly used in water treatment applications such as softening and filtration.

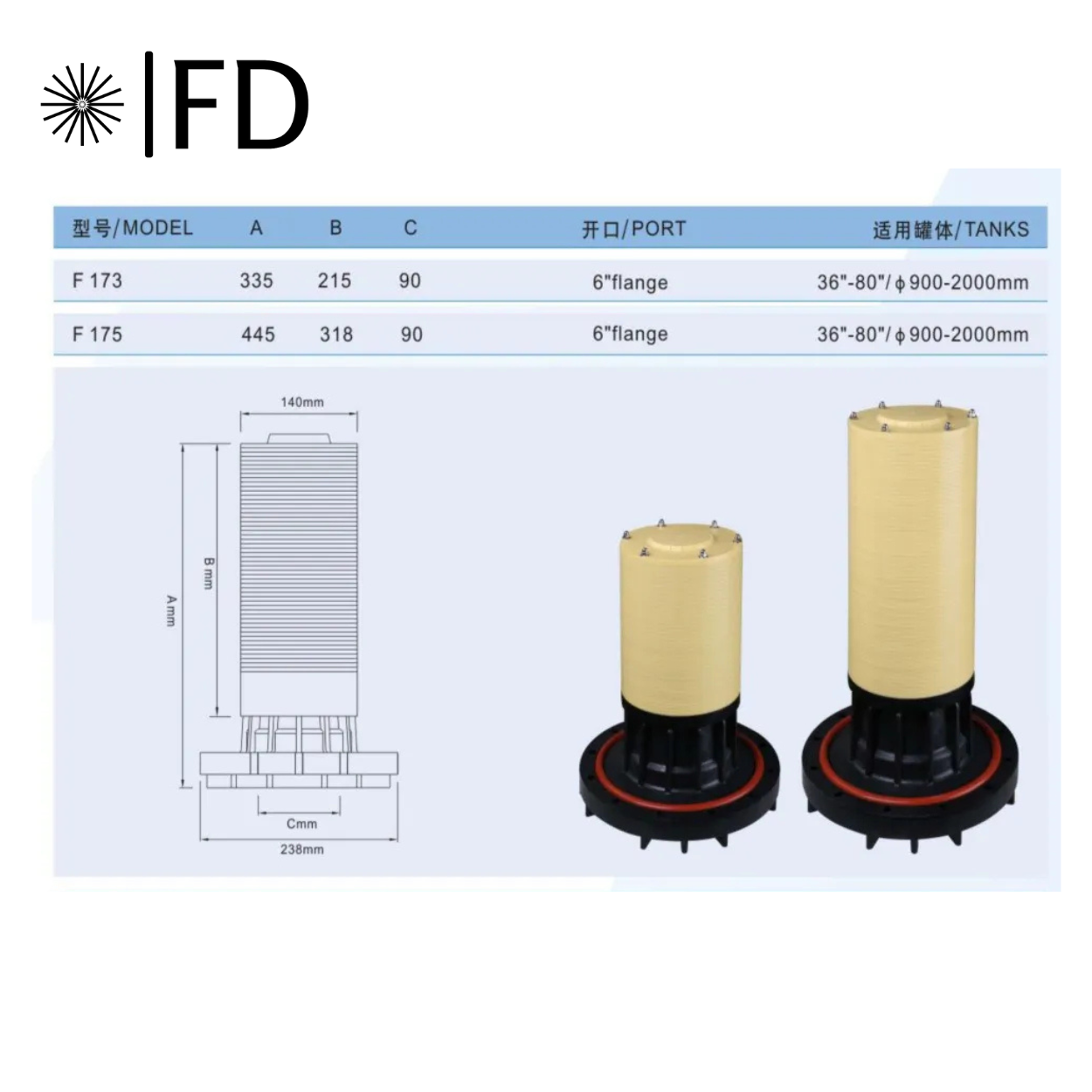

Key Specifications
Model: FU5674-2
Tank Compatibility: 4272 FRP filter tank (42" diameter)
Material: ABS/PP (Acrylonitrile Butadiene Styrene / Polypropylene)
Flange Size: 6 inches
Connection Size: 3 inches
Distributor Diameter: 90 mm
Maximum Flow Rate: 30–50 m³/h
Tank Diameter Compatibility: 1,050 mm
Manufacturer: China
Functionality
This distribution system serves multiple critical roles within the filtration process:
Particle Prevention: It prevents filter media particles from entering the post-treatment water pipeline, ensuring clean water output.
Uniform Flow Distribution: The mesh design ensures even distribution of water across the filter media surface, enhancing filtration efficiency.
Protection: It safeguards downstream components, such as valves, from potential damage caused by filter media ingress.
Application
The FU5674-2 is suitable for various water treatment systems, including:
Water Softening Plants: To prevent scaling and hardness in water.
Demineralization (DM) Plants: For removing minerals and salts from water.
Multi-Media Filters: To remove suspended solids and other impurities.
Its robust design and compatibility with the 4272 FRP tank make it a reliable choice for commercial and industrial water treatment applications.
